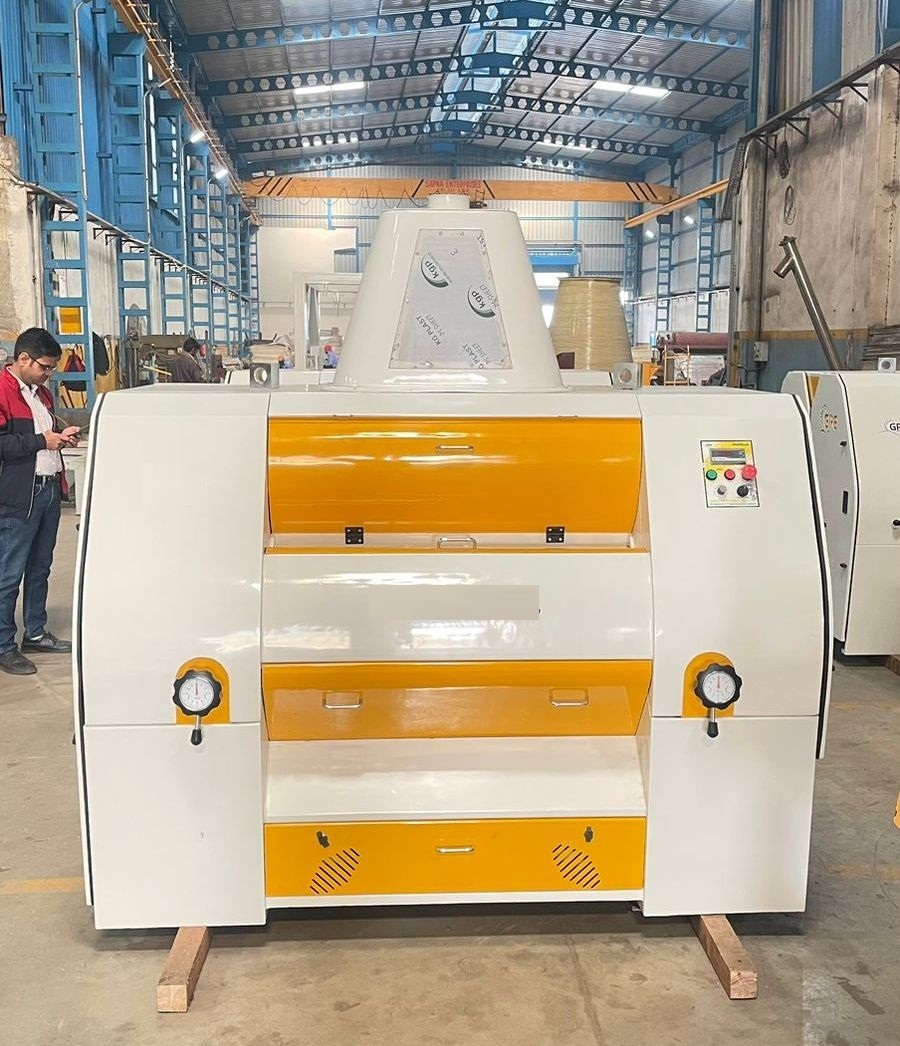

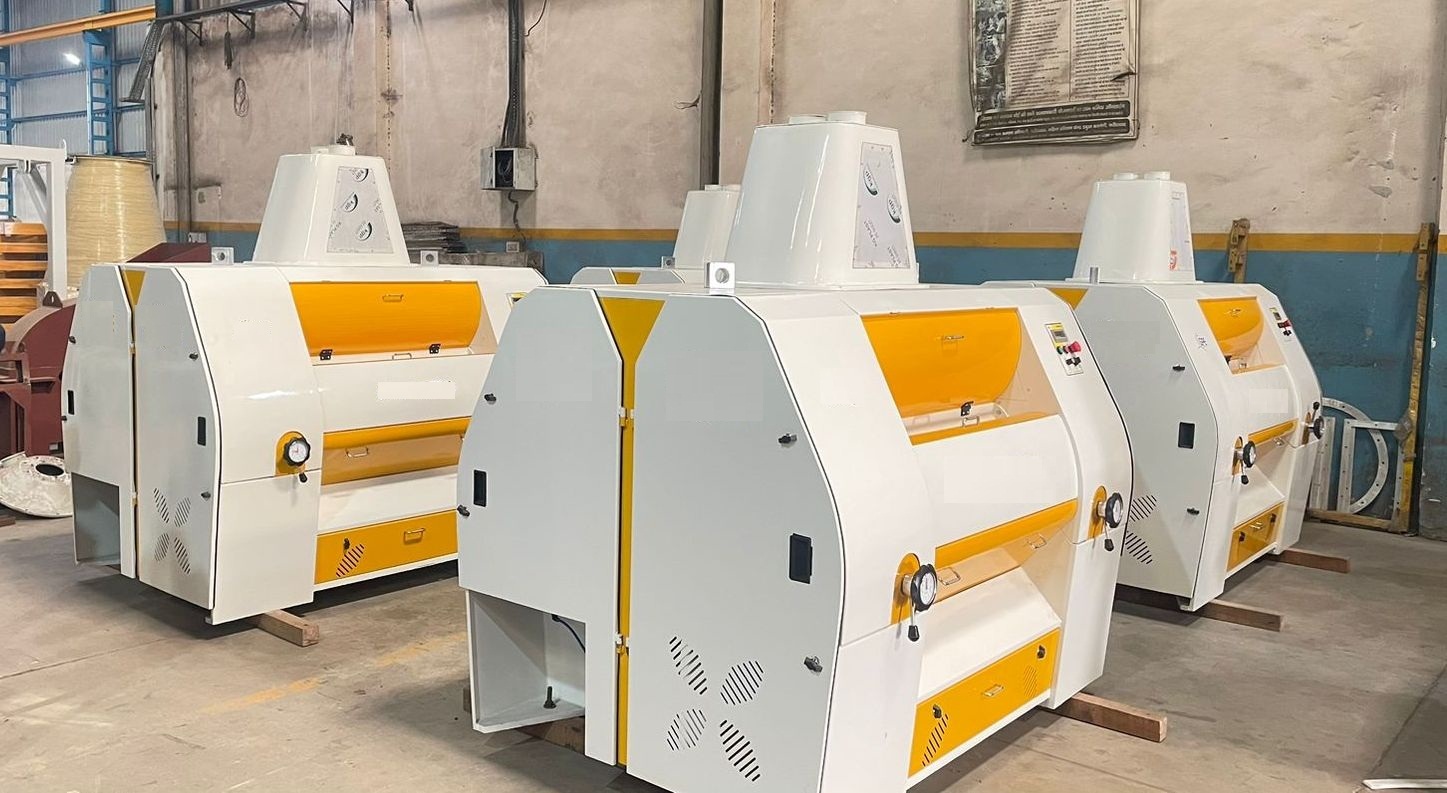

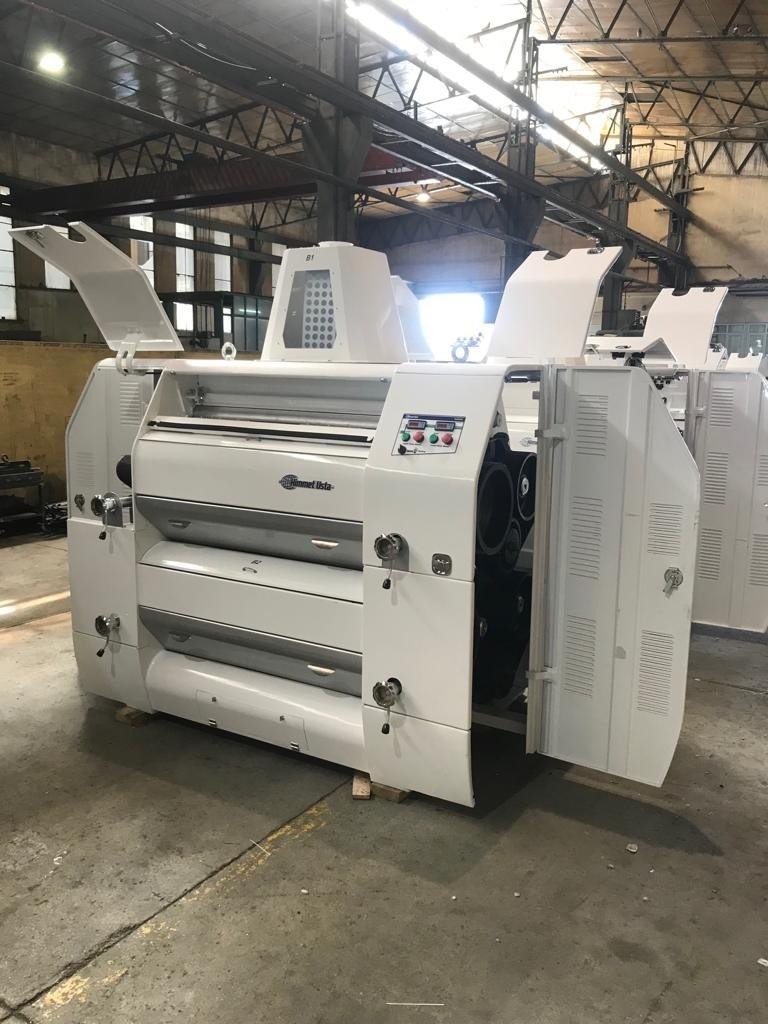

Roller Flour Mill Machine

Name: Roller Flour Mill Machine
Brand: VIJAY INDUSTRIAL UDYOG
Price: 650000 INR
Availability: InStock

Price 650000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Roller Flour Mill Machine Specification

Product Type
Roller Flour Mill Machine

General Use
c

Material
Stainless Steel

Computerized
No

Automatic
Yes

Feature
Compact Structure

Color
White

Warranty
1 Year

Roller Flour Mill Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Week

Delivery Time
5 Days

Main Domestic Market
All India

About Roller Flour Mill Machine

The double roller mills are for grinding cleaned grains and intermediate products. Theyare the key machines with the grinding technology in flour mills and other food and chemical industriesThe roller mill consists of two independent milling sections located in a common body theyare made of cast iron which reduces vibration arising from grinding. Each milling section consists of :- * Feed Glass Hopper , * Hopper with Feed Rolls and product flow adjust system * A pair of chilled C.I Rolls , Grooved/Polished * Roll engagement and disengagement system with micro-adjustment of the nip of Rolls * Roll Cleaning Brushes * Helical gears between rolls for achieving differential speed * Side Guards * Discharge Hoppers

The Product is fed through the feed glass via the distributor and is distributed over the wholelength of feed rolls in a regular layer. The feeder rolls supply the product from the hopper into the pitch of the Rolls.The feeder rolls are driven from V-Belt fitted on Roll. The gap between the Rolls is adjusted according totype of product and grain size. The Rolls on differential speed. The fast Roll supported with a bearing isfixed to the body whereas the slow Roll Supported with bearing is adjustable to achieve the rolls pitch.The engagement and disengagement of the Rolls is done with a hand lever. The Roll cleaning is performedby brush or scraper. The product is taken out from discharge hopper after grinding. The provision for directlifting with pneumatic system is also provided on customers choice.
